This rotor has been designed to attach to a Smart Drive PMA and is rated up to 30m head with a 2.0kW output.

We have two options: fully assembled or a DIY kit that you assemble yourself. The DIY kit receives free worldwide shipping!

Fixing kit is optional, this kit will attach the Turgo rotor to a turned down 25mm shaft that is 17mm in diameter and 54mm long, that has an internal M12 thread. Click here for correct shaft to use.

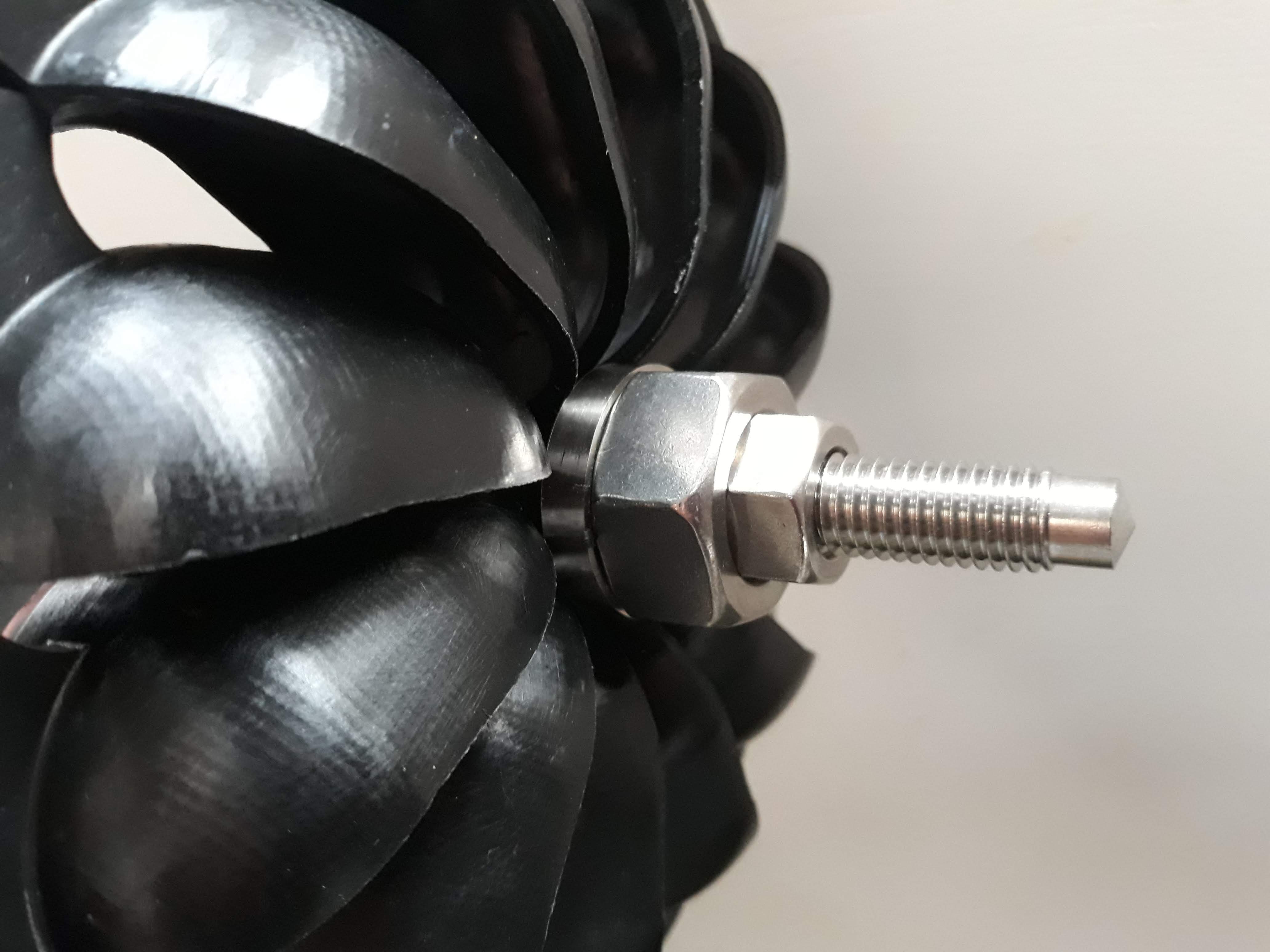

Refer to pictures to see the fixing kit that includes:

7 x 17mm ID stainless packing washers
2 x taper locks (stainless/plastic)
1 x M16 stainless locating nut
1 x M12 stainless securing nut
1 x M12 stainless threaded rod (cut down to suit the length you need)

Specifications:

Material = Black/Nylon GF30
Number of spoons on rotor = 12
Spoon width = 45mm
Length of spoon = 65mm
Maximum jet diameter = 25mm
Hub thickness = 50mm
Hub fixing hole = 17mm<
